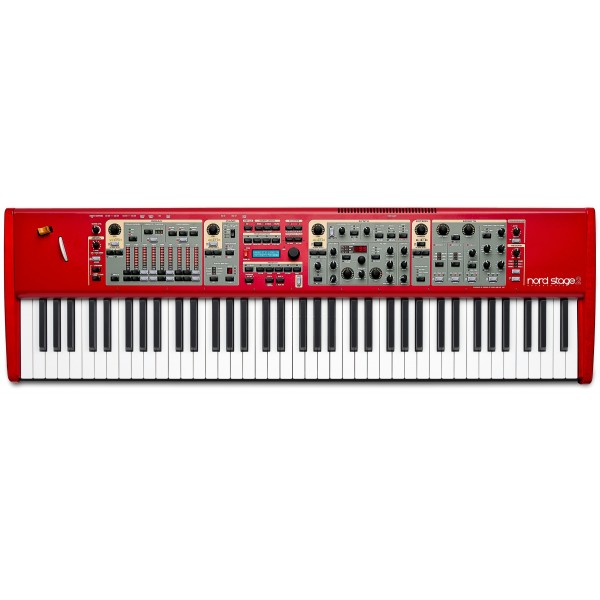

Clavia Nord Stage 2 76

6 samostatných nástrojů v jednom (každý s nezávislou polyfonní kapacitou): 2x samplované akustické a elektrické piano, 2x elektromechanické a tranzistorové varhany (virtuálně akustická syntéza) a 2x syntezátor (virtuální analog + sampler). Unikátní audio morphing. Master keyboard (3 zóny). 88 kláves s hammer mechanikou, aftertouch, modulač. kolečko, pitch stick, všechny parametry ovladatelné v reálném čase. Multiefekt: Leslie, Reverb, Delay, Compressor, Chorus, Phaser, Flanger, Wah-Wah, Pan, Tremolo, Equalizer, simulace repro. 512 Mb pro programy, všechny programy lze vyměnit (ke stažení na webu). Nové: klavír - resonance strun + hluk pedálu, syntezátor - arpeggiator, kompatibilita s knihovnou Nord Sample (komplet Mellotron, Chamberlin, cemballo, strunné a dechové nástroje), možnost vytvářet vlastní samply). USB MIDI, externí MIDI synchronizace.


SPECIFIKACE:
Master Level Control
Wooden Pitch Stick
Modulation Wheel
400 Programs - 4 Banks with 20 Pages each. Each Page has 5 Program locations
Program Categories
Program Sort Modes - numerical, alphabetical or by category
5 Live Buffers
2 Individual Slot Setups
3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch)
Global Mono output
Programmable Transpose +/- 6 semitones
Master Clock functionality with manual, external and tap-tempo rate control
Internal and MIDI clock source
MIDI over USB functionality


ORGAN SEKCE:
B3 Tone wheel Organ, Vox Continental and Farfisa models with full polyphony
9 digitally controlled Drawbars
Percussion controls
Vibrato / Chorus control
Two Drawbar settings per program
2-Part Multitimbral (2 manuals)


PIANO SEKCE:
Approx. 500 Megabyte memory for Piano sounds
Acoustic Grand Pianos
Upright Pianos
Electric Pianos
Wurlitzer A200 Electric Piano
Clavinet D6
Harpsichords
Electric Grand Pianos incl. CP-80
40-60 Voices Polyphony
4 Selectable Velocity Curves
Clavinet EQ controls
String Resonance (on acoustic Grand Pianos and Uprights)
Selectable Piano Release
Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos)
Slot Detune functionality
2-Part Multitimbral


SYNTH SEKCE:
Sample Playback synthesis: approx. 380 Megabytes of sample memory, up to 999 Sample Instruments.
Analog synthesis: Multiple waveforms - including Dual Saw, Hard Sync and PWM
FM synthesis: 2 & 3 Operator FM synthesis
Wavetables synthesis: 62 waveforms
18 Voices polyphony
Unison control - with no reduction in polyphony
Timbre controls
Amplitude envelope
Modulation envelope
12 & 24 dB Low Pass, High Pass, Band Pass and Notch Filter with Resonance
LFO with 4 waveforms (square, triangle, ramp and sample & hold)
300 Patch memory locations
Arpeggiator (Up-Down, Down, Run and Random). Range: 2, 3 or 4 octaves.
LFO and Arpeggiator synchronizable to Master Clock
2-Part Multitimbral


EFEKTY:
Unit One: Ring Modulator, Tremolo, Pan, Wah 1, Wah 2, AutoWah
Unit Two: Flanger, Vibe, 2 Phasers, 2 Choruses
Delay - with Ping Pong (stereo taps) and Tap-Tempo
3 types of Speaker simulations, JC, Twin and Small
Tube amp simulation with adjustable overdrive
3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
Effect rates/tempo can be synchronized to the Master Clock


MASTER EFEKTY:
Compressor
Reverb - 6 algorithms


GLOBAL:
Level control
Zone (split assignment) control


KLAVIATURA:
HA88/HA76-models: Hammer Action Weighted keyboards. Range: HA88: A-C, HA76: E-G
SW73-model: 73-note Semi Weighted Waterfall keyboard. Range: F-F
Aftertouch
Supports 3 split zones with visual LED indication


KONEKTORY:
4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
Stereo Headphone output - ¼", 6,35 mm stereo jack
1 Monitor input - 1/8", 3,5 mm stereo jack
Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
Sustain input compatible with Nord Triple Pedal (sold separately)
Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
MIDI In - 5 pin DIN connectors
MIDI Out - 5 pin DIN connectors
USB - type B connector
IEC320 C7 power connector


PŘÍSLUŠENSTVÍ:
User Manual
Dust cover (HA88 and HA76 only)
Sustain pedal (HA88 and HA76 only)
Power cord
Nord Sample and Piano DVDs
USB cord


ROZMĚRY:
Nord Stage 2 HA88: 1297 mm (51"), 121 mm (4.5"), 334 mm (13")
Nord Stage 2 HA76: 1132 mm (45"), 121 mm (4.5"), 334 mm (13")
Nord Stage 2 SW73: 1111 mm (44"), 102 mm (4"), 297 mm (12")


HMOTNOST:
Nord Stage 2 HA88: 18,5 kg (41lb)
Nord Stage 2 HA76: 16,5 kg (36lb)
Nord Stage 2 SW73: 9,7 kg (21lb)
